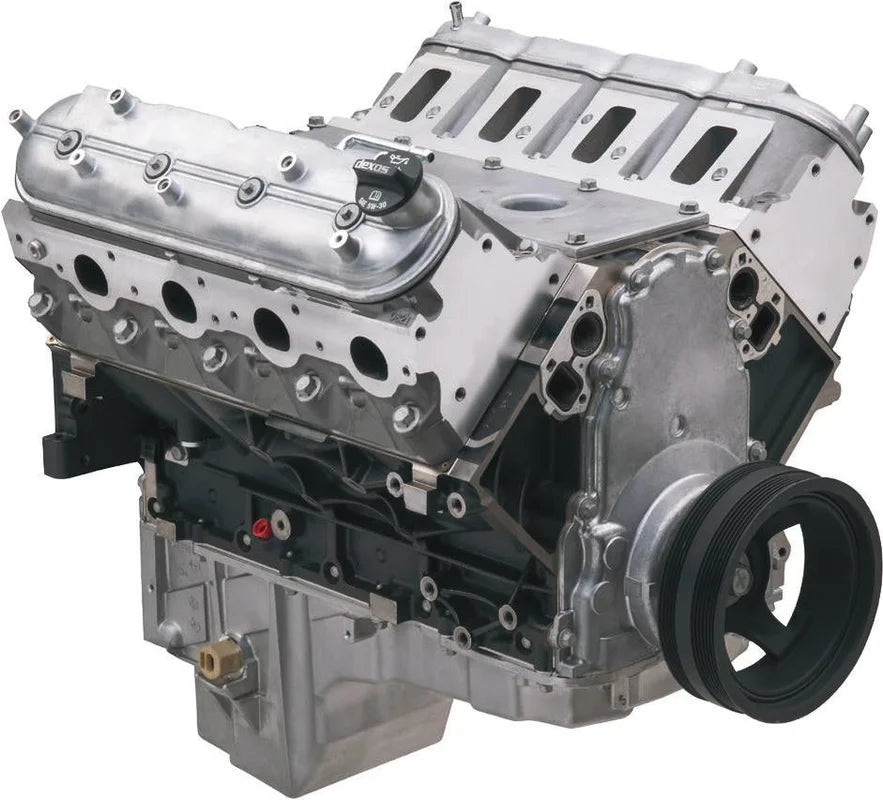

LS364/450hp 6.0L 24x Long Block Crate Assembly 19434650

Description CALL OR EMAIL FOR LATEST AVAILABILITY! ****BE SURE TO SELECT THE LIFT GATE OPTION BEFORE YOU ADD TO CART, IF YOU DON’T HAVE A FORK LIFT OR A DOCK!*** Old PN: 19370163 and 19432690 New PN: 19434650 BUDGET PERFORMER BLENDS BEST OF LS ENGINE FAMILY.

Chevrolet Performance engineers have developed the LS364/450 as a value-driven foundation for hot rod builders and enthusiasts looking to give their earlier LS-powered vehicles a high-performance shot in the arm.Starting with a strong, economical iron cylinder block and durable rotating assembly, the LS 6.0L features the high-lift LS6 camshaft and the deep-breathing LS3 aluminum cylinder heads. It’s a strong combination with exceptional horsepower and a broad torque band. It is also fuel injection-capable, using production-based components offered in this catalog.

The LS364/450 is designed with the early-style 24X crankshaft and 1X camshaft sensors, enabling easier retro-fit installation in early LS-powered vehicles, including 1998–2002 Camaros, C5 Corvettes, 1999–2006 full-size trucks and SUVs, and other LS vehicles. We offer the LS364/450 exclusively as a long-block assembly, without the induction system, ignition system or front-end accessory drive system, allowing builders to transfer components from their early LS-powered vehicle or complete a custom build with the components of their choice. An intake manifold that matches the LS3/L92-style rectangular intake ports is required.

No matter which vehicle you drop the LS364/450 into, its combination of horsepower and value will push your project vehicle to the next level of performance!

TECH SPECSPart Number:19370163Engine Type:Performance LQ9 long blockDisplacement (cu in):364 cu in (6.0L)Bore x Stroke (in):4.000 x 3.622 in (101.6 x 92 mm)Block:Cast iron with 6-bolt block, cross-bolted main capsCrankshaft:Nodular ironConnecting Rods:Powdered metalPistons:Hypereutectic aluminumCamshaft Type (P/N 12565308):LS6 hydraulic rollerValve Lift (in):0.550 intake / 0.550 exhaustCamshaft Duration (@.050 in):204o intake / 218o exhaustCylinder Heads:LS3 rectangular port; aluminum, as-cast with 68cc chambersValve Size (in):2.165 intake (hollow stem) 1.590 exhaust (solid stem)Compression Ratio:10.3:1 (nominal)Rocker Arms:Investment cast, roller bearing trunnionRocker Arm Ratio:1.7:1Recommended Fuel:Premium pumpMaximum Recommended rpm:6,800Reluctor Wheel:24XBalanced:Internal.

INSTALLATION NOTES• Assembly does not include any electronics• Engine is compatible with a vehicle’s existing Gen III controller, but tuning is required• Includes LQ9 oil pan• Requires intake manifold matched to LS3- or L92-style rectangular intake ports• LS3 or L96 production intake manifolds can be used, but require an aftermarket adapter plate for use with early LS three-bolt throttle bodies, if using an OEM Gen 3 throttle body.• Not intended for marine applications.
